UEE-SERIES - UEE922

Function & Feature

• With high quality metal probes and shell.
• Large memory to save 4 types of materials and 1560 testing values.
• Software for PC connection and data transmission, analysis.
• Two measuring methods: continuous and single;
• Two working mode: direct and batch;
• Limit setting function.
• Switch off automatically or manually.
• 3 ways for easy Calibration: by one specimen, two specimens or five specimens to finish calibration.
• Five statistics: Average, Max, Min, Testing times, Standard deviation.
• Standard delivery with 5 calibration specimens (48.5m, 99.8m, 249m, 513m, 1024m)

Measuring Materials

• Magnetic Induction (Fe): Measuring the thickness of Non-magnetic coating on magnetic metal substrate, such as
 aluminum, Chromium, copper, zinc, rubber, paint on the base of steel, iron, alloy and magnetic steel.
• Eddy Current (NFe): Measuring the thickness of Non-conductive coating on non-magnetic metal substrate, such as
 rubber, plastic, paint oxide on the base of aluminum, copper, zinc, tin

Technical Parameters

Model No. UEE922
Measuring principle Magnetic induction (Fe) & Eddy current (NFe)
Measuring range (µm) 0~1250µm
Probe Changeable
Shell Metal
Accuracy ±(2%H+1) µm; H refers to the thickness of testing piece
Minimum resolution (μm) 0.1µm
Min Curvature of the min area (mm) Convex1.5 Concave9
Diameter of the min area (mm) Φ7
Critical thickness of substrate (mm) 0.5
Memory 1560
Dimensions 130*70*30mm
Power supply 2*AA Alkaline battery
Standard Configuration Main Machine, probe*1(Fe or NFe), substrate*1(Fe or NFe),software & USB, Calibration specimens*5, Users’ Manual, Qualified Certificate, Coin screwdriver, AA battery*2, Packing list, Warranty card
Optional Accessories Probes,Specimens

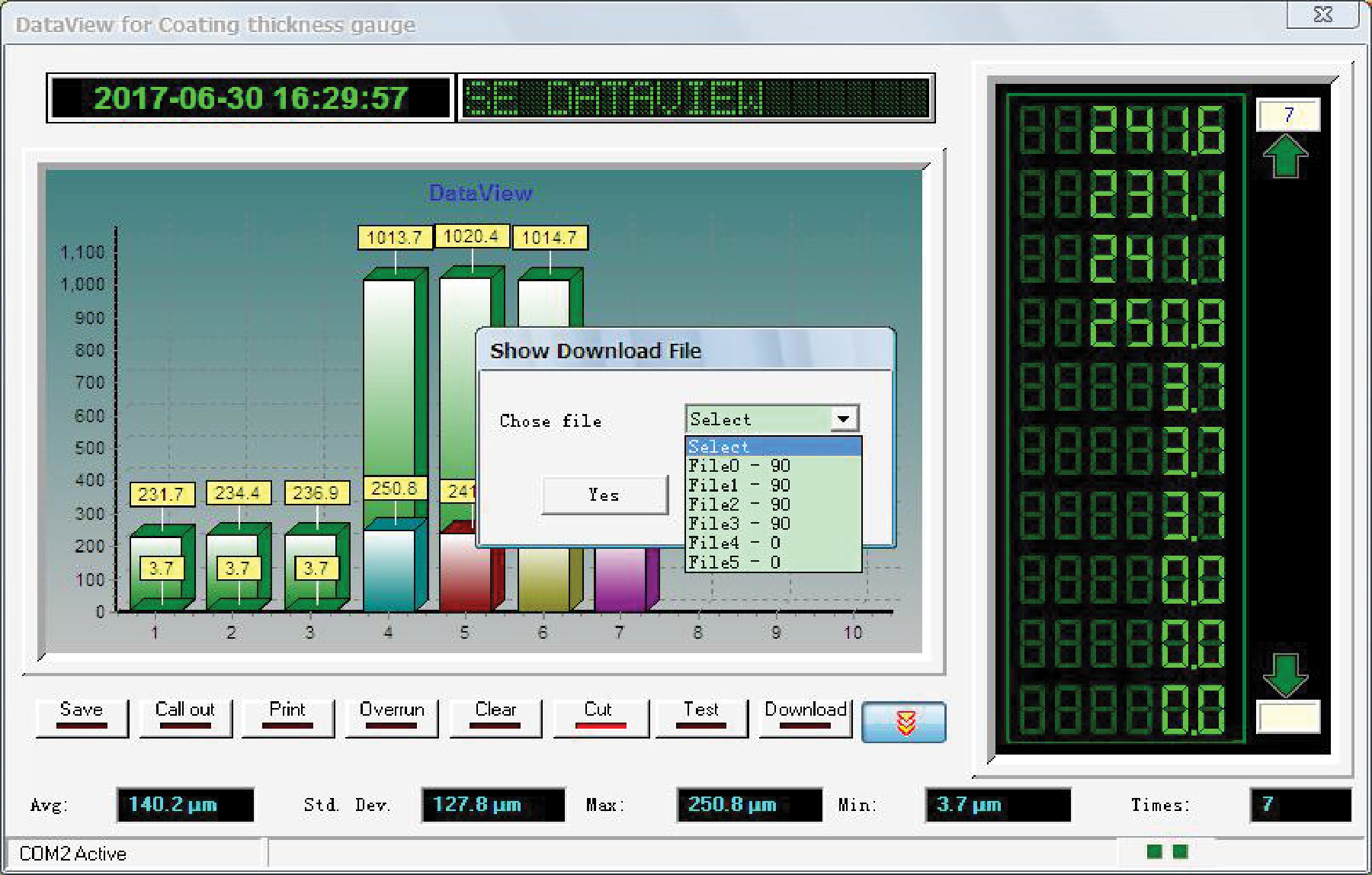

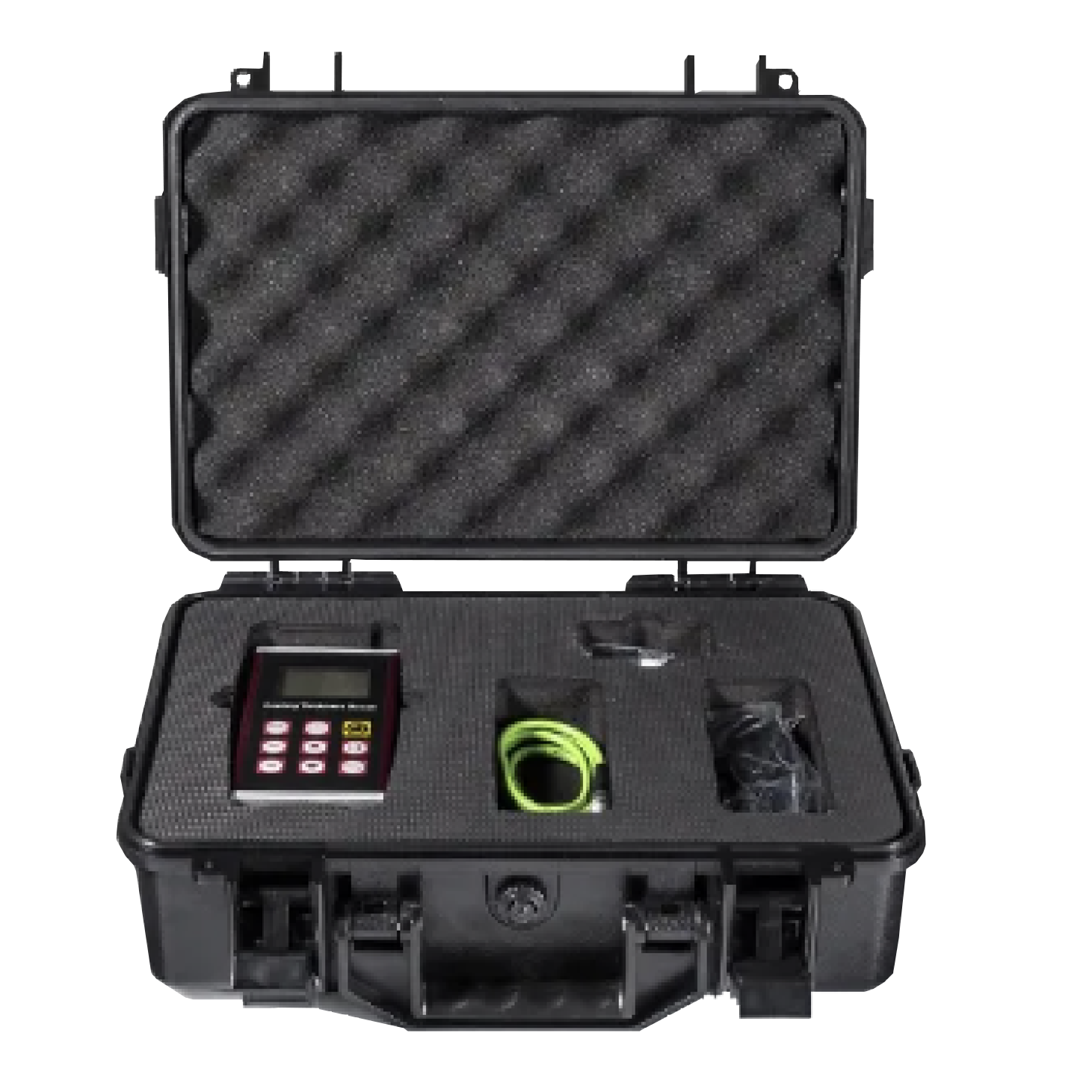

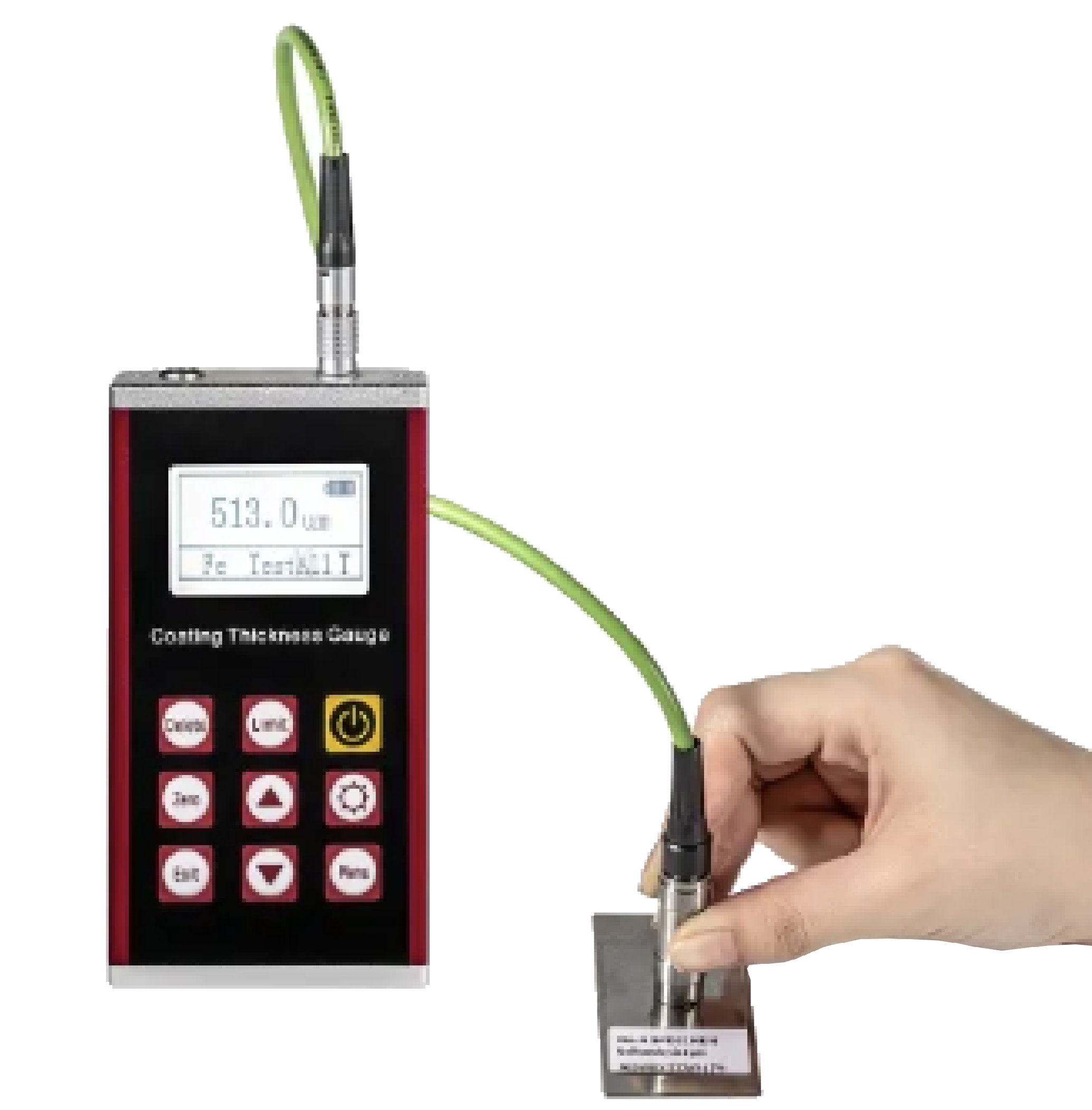

PC Software Measuring 513um Specimen Water-proof Box
